Robotic Clamp - ISC-P6-P1

Basic Information
Place of Origin: Beijing,China
Brand Name: Soft Robot Gripper
Certification: FDA CE ISO
Model Number: ISC-P6-P1
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Depending on the order quantity
Detail Information
Name: Soft Robot Gripper Model: ISC-P6-P1
Certification: FDA CE ISO Load: 480g
Limit Expansion Outer Diameter: 8.7mm Application: Automobile Industry, Foodindustry, 3C, Medical Equipment, Etc
Material: Food-grade Silica Gel

Product Description

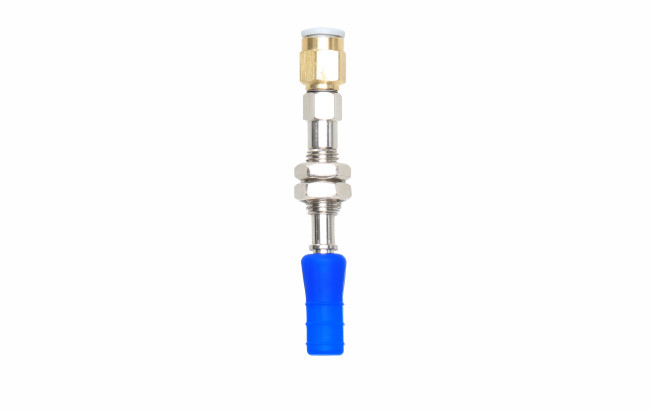

Robotic Clamp - ISC-P6-P1



Product Description

Internal supporting fixture has special airbag  structure and can produce different deformation along with internal pressure. Input positive pressure: Fixture extends, self-adaptively supporting at internal surface of the object and completing grasping. Releasing pressure: Fixture presents natural state and releases the object.


Parameter

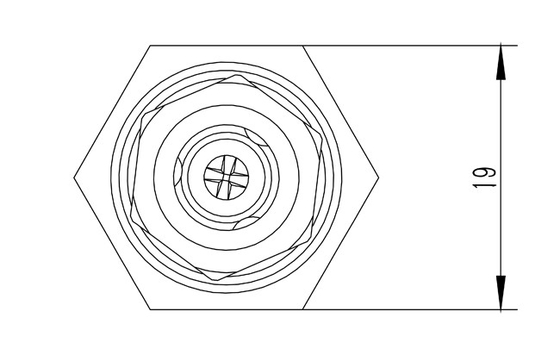

Model Dimensions Product Detail

H

(mm)

A

(mm)

D

(mm)

B

(mm)

N

(mm)

Pressure Range

(kPa)

Expansion Outer Diameter

(mm)

Load

(g)

Working Lifespan

(times)

Responding Speed

(s)

ISC-P6-P1 23 10.6 6 12.6 73 0-240 8.7 480 >100,000 >0.3


Advantage

Soft, Safe, Durable, Food Safety

Has passed FDA, CE, ISO9001 certification

One gripper for complex gripping problem
Heavy cargo handling small expert
Not damage the product packaging and the contents inside
Pick and place operations in many industrial production

Automate with SRT soft robot gripper



Product Detail

Robotic Clamp - ISC-P6-P1 0


Applications

SRT Robotic Clamp - ISC Series has various models, aiming at different shapes, sizes and weights, it has launched targeted solutions:

Workpiece of bottle shape, ring shape and with holes, high softness.

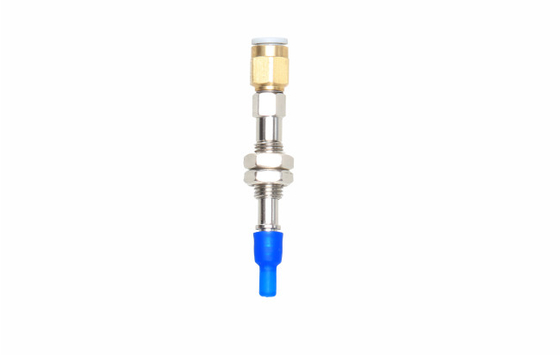

Robotic Clamp - ISC-P6-P1 1

Robotic Clamp - ISC-P6-P1 2
