Place of Origin: | Beijing,China |
---|---|
Brand Name: | Soft Robot Gripper |
Certification: | FDA CE ISO |
Model Number: | N2027 |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | Carton Package |
Delivery Time: | 2-3 work days |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | Negotiation |
Weight: | 20.6g | Application: | Automobile Industry, Foodindustry, 3C, Medical |
---|---|---|---|
High Light: | Adjustable Spacing Soft Robotic Finger,Medical Industry Soft Robotic Finger,Adjustable Spacing Robotic Finger |

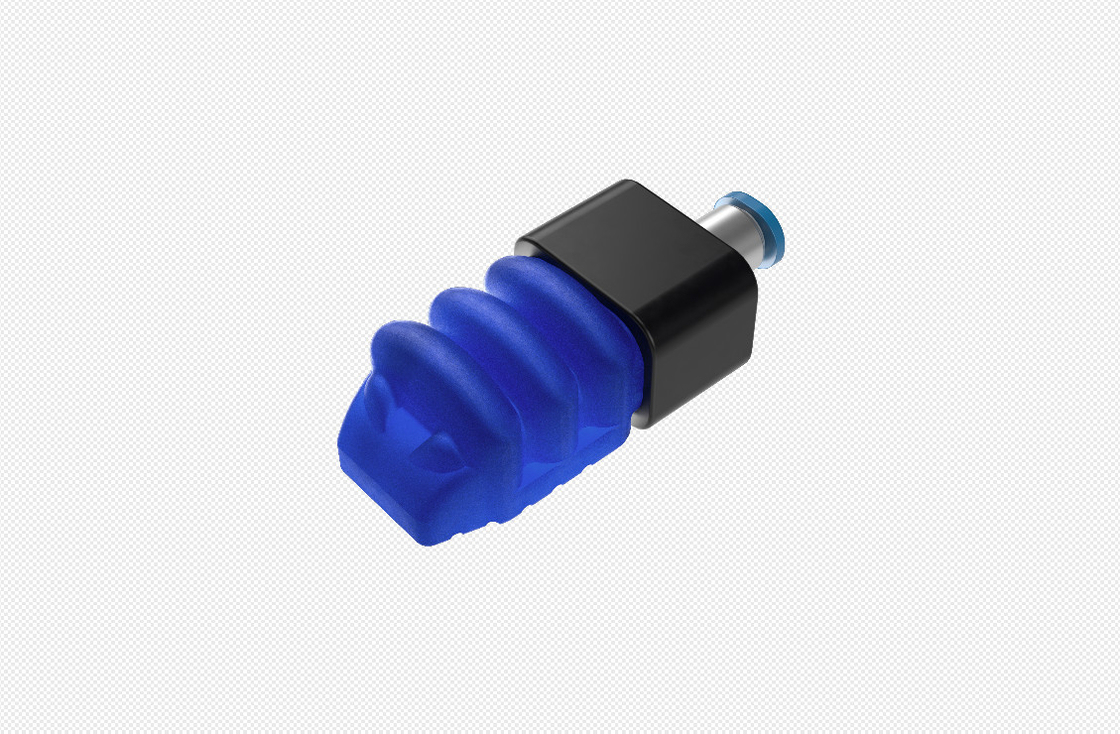

N2027+ smooth and reliable+ soft robot fingers
Smooth and reliable gripping on materials during fast movements
The soft robot fingers can freely adjust the finger spacing to the size of the object in order to grasp different objects. This adjustable gripper is outstandingly practical in production because one gripper is able to grasp a wide range of products, eliminating the need for frequent device changes. Thanks to the soft robot finger, engineers can design solutions more easily.
W/mm | 20 | |
L/mm | 26.5 | |
Ln/mm | 41.5 | |
T/mm | 16.8 | |
X/mm | 1.5 | |
A/mm | 22 | |
B/mm | 16 | |
Smax/mm | 10 | |
Ymax/mm | 11.5 | |
weight/g | 20.6 | |
fingertip thrust/N | 3.8 | |
load coefficient of individual finger/g | vertical | 180 |
pack | 300 | |
working speed/cpm | <110 | |
product life/bout | >300W | |
working pressure | -60~100kPa | |
Connection diameter | 4mm |
