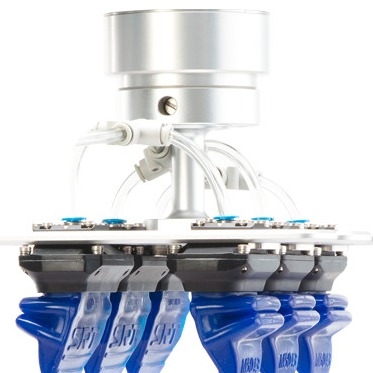

Soft Robot Gripper - SFG-FMA6-M5086
SFG Soft Finger Gripper User Manual V1.0.pdf
Product Description
Different with rigid structure of traditional jaws, soft flexible gripper has soft pneumatic “finger”, which can cover the target object self-adaptively, and it doesn’t need to be pre-adjusted according to the accurate size and shape of the workpiece, which can get rid of the constraint of the traditional assembly requirements that the object size should be uniform.

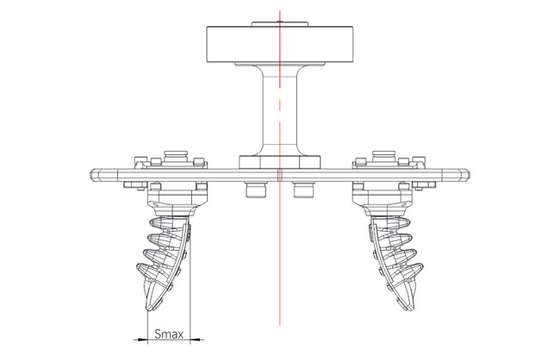

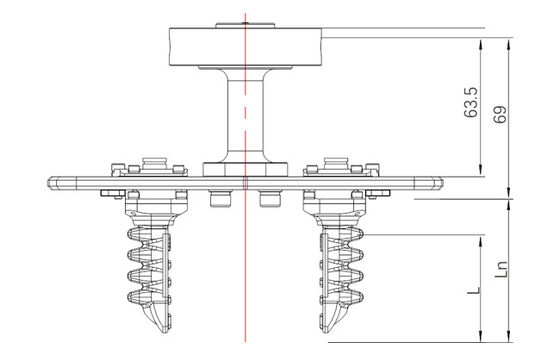

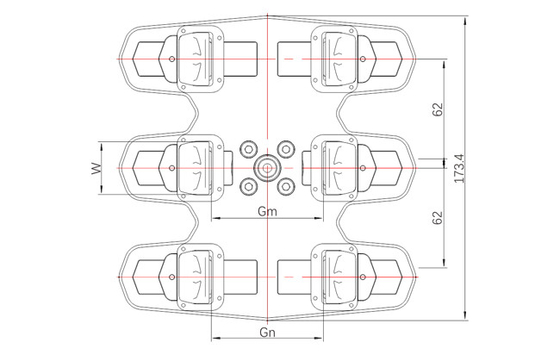

| Model | Dimensions(mm) | Gripping Capacity | ||||||||||
| Wb | Wn | Wm | Hb | Gn | Lb | Lt | Ln | L | Smax | Ymax |
Dn+2Smax (mm) |
|
| SFG-FMA6-M5086 | 173.4 | 50 | 62 | 168.7 | 52-100 | 69 | 63.5 | 107 | 86 | 55 | 63.3 | 52-210 |
Advantage
Soft, Safe, Durable, Food Safety
Has passed FDA, CE, ISO9001 certification
One gripper for complex gripping problem
Heavy cargo handling small expert
Not damage the product packaging and the contents inside
Pick and place operations in many industrial production
Automate with SRT soft robot gripper
Product Detail
Standard working lifespan: ≥3,000,000 times
Load: 4200g
Maximum working pressure: 100 kPa
Air tube diameter: 6 mm
Weight: 1356g
Applications
SRT flexible gripper has various models, aiming at different shapes, sizes and weights, it has launched targeted solutions:
1. Ball-like and flat objects should choose circular distributed grippers. Long and slim objects should select symmetric distributedgrippers.
2. Smaller objects should select tight grippers with short fingers. Bigger objects should select adjustable grippers with longer fingers.
3. Lighter objects can select small grippers with less fingers. Heavier objects can select big grippers with more fingers.
