Food Industry 800g EOAT Pneumatic Soft Gripper

Basic Information
Place of Origin: Beijing,China
Brand Name: Soft Robot Gripper
Model Number: SFG-FCA4-M3064
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Depending on the order quantity
Detail Information
Certification: FDA CE ISO Name: Soft Robot Gripper
Model: SFG-FCA4-M3064 Load: 800g
Application: Automobile Industry, Foodindustry, 3C, Medical Equipment, Etc Material: Food-grade Silica Gel
Smax: 42mm Weight: 584g
High Light:

EOAT Pneumatic Soft Gripper

,

800g Pneumatic Soft Gripper

,

Flexible EOAT Grippers


Product Description



Pneumatic Soft Gripper - SFG-FCA4-M3064



Product Description

What is even more satisfying to customers is that after the SRT-iEOAT solution is configured, the cost of a set of 2D vision is saved for customers, and a robot can load two stations at the same time, which increases the efficiency of the production line by 2 times.

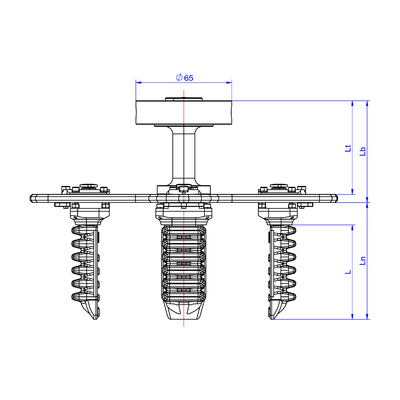

Parameter
Model Dimensions(mm) Gripping Capacity
φb Wn Dn Lb Lt Ln L Smax Ymax

Dn+2Smax

(mm)

SFG-FCA4-M3064 208.5 30 50-147 69 63.5 79 64 42 42 50-231


Advantage

Soft, Safe, Durable, Food Safety

Has passed FDA, CE, ISO9001 certification

One gripper for complex gripping problem
Heavy cargo handling small expert
Not damage the product packaging and the contents inside
Pick and place operations in many industrial production

Automate with SRT soft robot gripper



Product Detail

Standard working lifespan: ≥3,000,000 times

Load:800g

Maximum working pressure: 100 kPa

Air tube diameter: 6 mm

Weight: 584g

Food Industry 800g EOAT Pneumatic Soft Gripper 0


Applications

SRT flexible gripper has various models, aiming at different shapes, sizes and weights, it has launched targeted solutions:

1. Ball-like and flat objects should choose circular distributed grippers. Long and slim objects should select symmetric distributedgrippers.

2. Smaller objects should select tight grippers with short fingers. Bigger objects should select adjustable grippers with longer fingers.

3. Lighter objects can select small grippers with less fingers. Heavier objects can select big grippers with more fingers.

Wholesale high quality new stock pneumatic soft robot gripper



About us

Soft Robot Tech Co., Ltd. (SRT) is an innovative technology company based on software robotics technology. Its headquarters is located in Tianji Zhigu, Yizhuang Economic Development Zone, Beijing. Its R & D personnel are from Harvard University, Northeastern University of American, Beihang University and other well-known universities. SRT is committed to the promotion and application of soft robot technology in the field of industrial automation, providing customers with simple and reliable flexible grasping solutions for complex products, and continuously creating considerable value for users. It is a leading equipment manufacturer and service provider in China in terms of machine vision and industrial intelligence, it has several core technologies and independent intellectual property rights in the fields of visual positioning, visual measurement, visual inspection and visual recognition, and has been rated as a leading talent enterprise in Suzhou in 2020. It also focuses on the field of non-standard automation, and its main business is to provide intelligent manufacturing solutions for traditional manufacturing industry.



Headquarters: Beijing

4 Offices: Suzhou, Shenzhen, Zhangjiagang, Yongkang

16 Overseas agents: Japan, South Korea, Thailand, Malaysia, Singapore, France, Spain, Poland, Denmark, Netherlands, Belgium, Luxembourg, Colombia, Portugal, Canada,Bulgaria.

2 Subsidiaries in China
