N2020 + wide gripping range + soft robot fingers

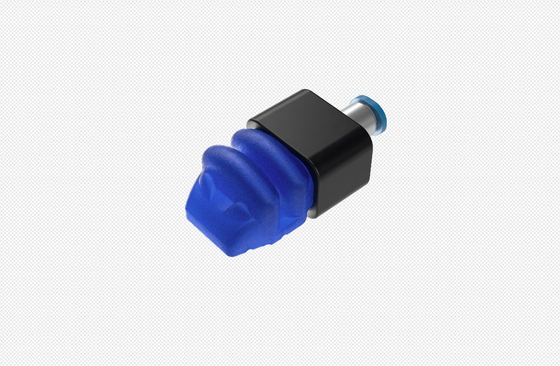

Soft robot fingers with wide gripping range
Flexible soft robot fingers can be used for sorting and gripping glass and shaped bottles. It has soft pneumatic fingers that can be adapted to cover the target object without pre-adjustment for size and shape. It can also be seamlessly integrated with collaborative and light industrial robots to help companies achieve automated and flexible production.
| W/mm | 20 | |
| L/mm | 19.2 | |
| Ln/mm | 34.2 | |
| T/mm | 16 | |
| X/mm | 1.5 | |
| A/mm | 22 | |
| B/mm | 16 | |
| Smax/mm | 5 | |
| Ymax/mm | 6 | |
| weight/g | 18.9 | |
| fingertip thrust/N | 4 | |
| load coefficient of individual finger/g | vertical | 200 |
| pack | 290 | |
| working speed/cpm | <110 | |
| product life/bout | >300W | |
| working pressure | -60～100kPa | |
| Connection diameter | 4mm | |
