Highly Integrated 2130g Load Bionic Soft Robotics Gripper

Basic Information
Place of Origin: Beijing,China
Brand Name: Soft Robot Gripper
Certification: FDA CE ISO
Model Number: SFG-FNC3-N4049
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Negotiation
Detail Information
Weight: 577g
High Light:

Bionic Soft Robotics Gripper

,

2130g Load Soft Robotics Gripper

,

Highly Integrated Soft Robot Gripper


Product Description

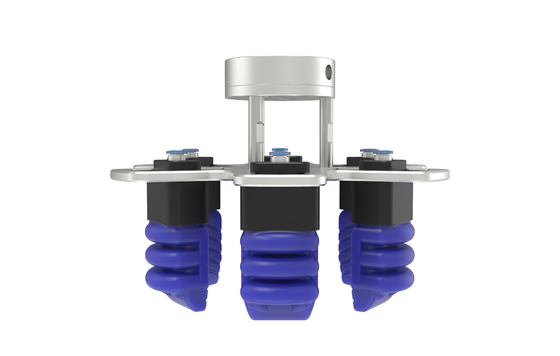

SFG-FNC3-N4049+ Precision And Durability + Soft Robot Gripper



Soft robot gripper with a precise, durable and highly integrated design



The design of the gripper is based on bionic principles, enabling it to wrap around and grip objects in imitation of the tentacles of an octopus. Conventional fixtures are often limited by the shape, material and gripping requirements of the object and therefore can not provide a successful gripping solution. But the soft robot finger is made of a flexible material that will not damage objects, and it is so versatile that users do not need to change grippers as often. In addition, with its centimetre-level adaptive capability, soft robot can be adapted to different workpiece shapes.



φb 200
Wn 40
Dn 22-133
Lb 68.2
Lt 62.7
Ln 72.5
L 48.5
Smax 19
Ymax 24
workpiece dimension range 22-171
load(g) 2130
product weight(g) 577
maximum working pressure 100kPa
product life 300w
