Pneumatic Soft Robotic Gripper

Basic Information
Place of Origin: Beijing,China
Brand Name: Pneumatic Soft Gripper
Certification: FDA CE ISO
Model Number: Pneumatic Soft Gripper -Compact Gripper-SFG-FCA4
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Depending on the order quantity
Detail Information
Name: Pneumatic Soft Gripper Model: Compact Gripper-SFG-FCA4
Certification: FDA CE ISO Load: 550g
Application: Automobile Industry, Foodindustry, 3C, Medical Equipment, Etc Material: Food-grade Silica Gel
Smax: 1.48 Weight: 1.57
High Light:

Pneumatic Soft Robotic Gripper

,

550g Soft Robotic Gripper

,

ISO soft pneumatic gripper


Product Description

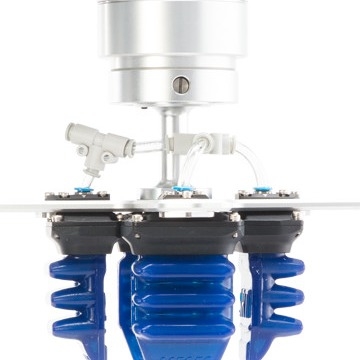

Pneumatic Soft GripperCompact Gripper-SFG-FCA4



Product Description

Fingers are circular distributed, and the spacing of fingers are adjustable so it has very strong self-adaptivity. It can adaptively grasp various of special sized and fragile goods, especially spherical like and plain cylindrical goods.





Parameter

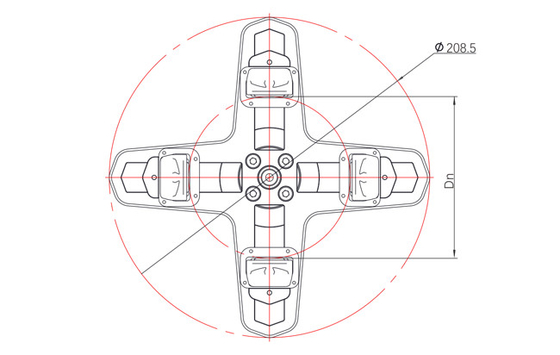

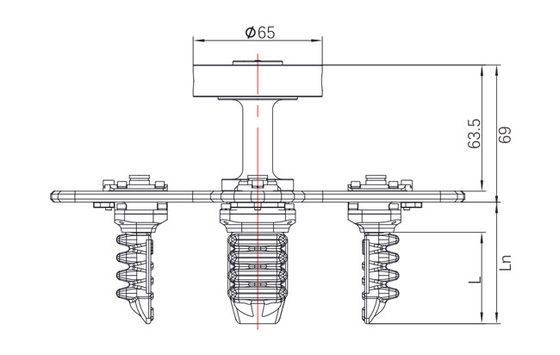

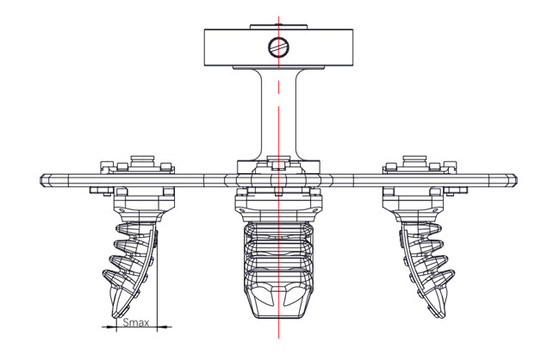

Model Dimensions(mm) Gripping Capacity Net weight(g)
W L Ln Dn Smax

D+2Smax

(mm)

Load

(g)

Frequency

(cpm)

SFG-FCA4- M3037 30 37 53 50-147 13 76-173 550 ≤110

605


Applications

The circumferential gripper can grab any spherical objects. In the field of fresh food, it can grab round fruits and vegetables such as apples, oranges, tomatoes, and especially suitable for grabbing glass cups.
