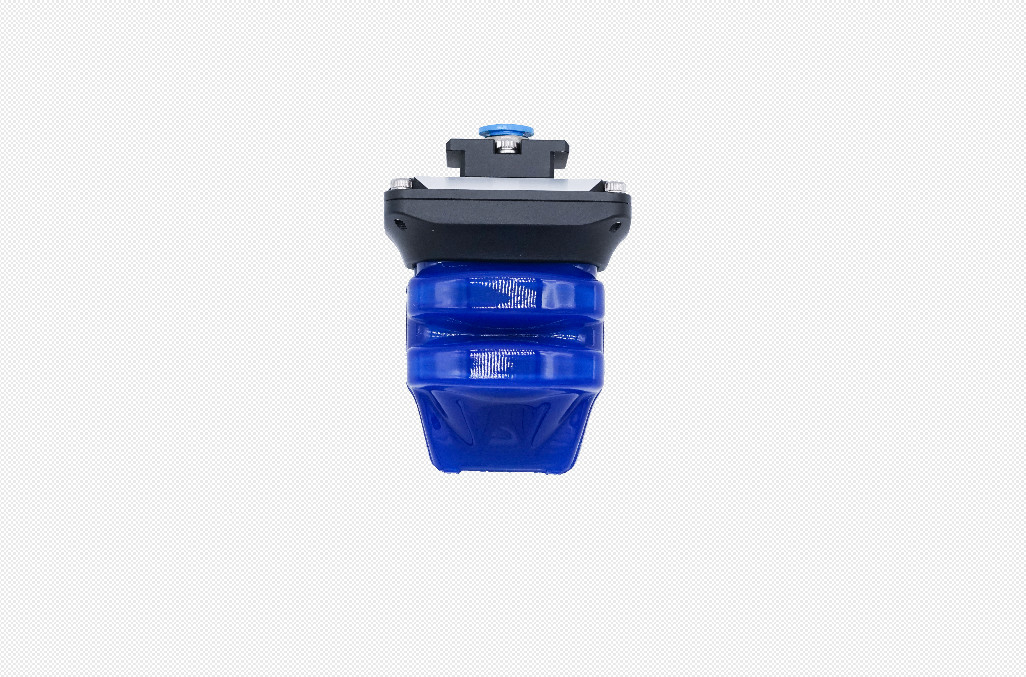

Pneumatically Driven Soft Robotic Finger For Shaped Objects

Basic Information
Place of Origin: Beijing,China
Brand Name: Soft Robot Gripper
Certification: FDA CE ISO
Model Number: T4040
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Negotiation
Detail Information
Weight: 79g Application: Automobile Industry, Foodindustry, 3C, Medical
High Light:

Pneumatically Driven Soft Robotic Finger

,

Shaped Objects Soft Robotic Finger

,

Shaped Objects Robotic Finger


Product Description

T4040+ low cost+ soft robot finger



Soft robot fingers for gripping shaped and fragile objects



The soft robotic fingers are pneumatically driven and possess a high degree of adaptability. By controlling the air intake, different movement designs, forces and precision can be adjusted when gripping different products. SRT soft robot is so versatile that products with small differences in size can be handled with one same jaw. For products with large differences in shape and size, different types of jaws can be used in a targeted manner. With a quick-change device, it is possible to switch different types of grippers automatically in order to achieve a higher versatility.

W/mm 40
L/mm 40
Ln/mm 59
T/mm 26.5
X/mm 5.4
A/mm 50
B/mm 30
C/mm 24
Smax/mm 23
Ymax/mm 20.5
weight/g 79
fingertip thrust/N 10.5
load coefficient of individual finger/g vertical 400
pack 550
working speed/cpm ≤80
product life/bout ≥300W
working pressure -100~100kPa
Connection diameter 6mm



Pneumatically Driven Soft Robotic Finger For Shaped Objects 0
