Place of Origin: | Beijing,China |
---|---|
Brand Name: | Soft Robotic Finger |
Certification: | FDA CE ISO |
Model Number: | Soft Robotic Finger -Compact Gripper-SFG-FMA4-M5086 |
Minimum Order Quantity: | Negotiation |
Price: | Negotiation |
Packaging Details: | Carton Package |
Delivery Time: | 2-3 work days |
Payment Terms: | L/C, D/A, D/P, T/T |
Supply Ability: | Depending on the order quantity |

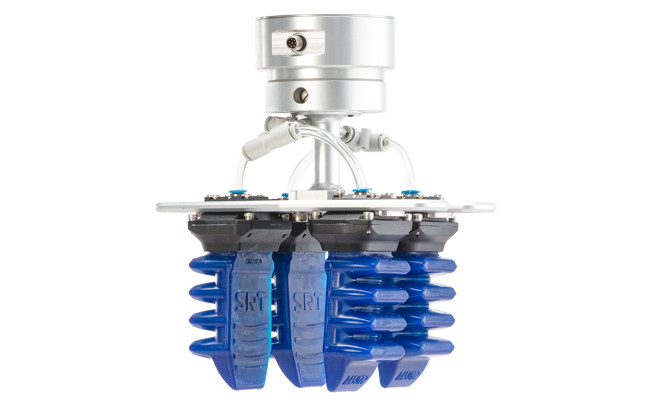

Name: | Soft Robotic Finger -Compact Gripper-SFG-FMA4-M5086 |
---|
Soft Robotic Finger -Compact Gripper-SFG-FMA4 Fingers are symmetric distributed, and the spacing of fingers are adjustable. It can adaptively grasp various of special sized and fragile goods, especially cubic like and long cylindrical goods.

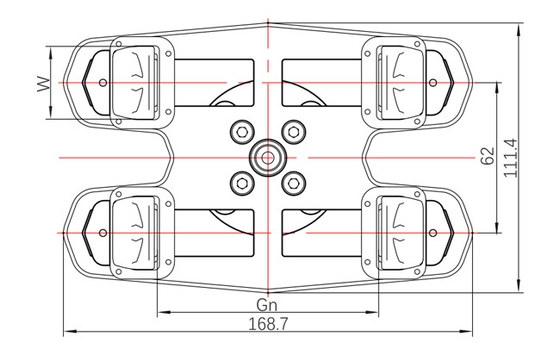

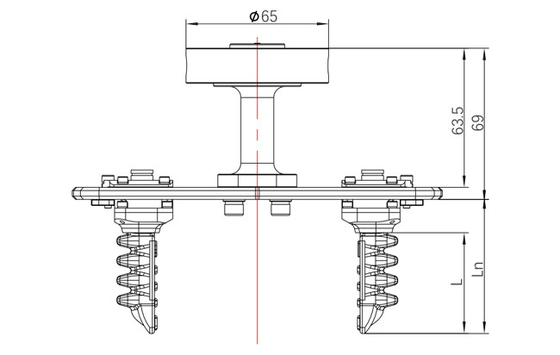

Model | Dimensions(mm) | Gripping Capacity | Net weight(g) | |||||||
W | L | Ln | Gn | Smax |
Gn+2Smax (mm) |
Load (g) |
Frequency (cpm) |
|||
SFG-FMA4- | M5072 | 50 | 72 | 93 | 52-100 | 42 | 136-184 | 3000 | ≤80 | 961 |
Applications
The symmetrical gripper has a wide range of applications, such as circuit boards, mobile phone frames, and mobile phone screens in the 3C industry; toys in the daily chemical industry; liquid bags in the medical industry and so on.
