Non-destructive handling of silicone EOAT inner support clamps

Basic Information
Place of Origin: Beijing,China
Brand Name: EOAT Grippers
Model Number: ISC - S Series
Minimum Order Quantity: 1
Price: USD+($99-$999)+1
Packaging Details: Carton
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: N+N+per 1 year
Detail Information
Certification: FDA CE ISO Name: EOAT Grippers
Model: ISC - S Series Load: 1.34
Application: Automobile Industry, Foodindustry, 3C, Medical Equipment, Etc Material: Food-grade Silica Gel
Smax: 2.44 Weight: 3.79
High Light:

Silica Gel 180kPa EOAT Grippers

,

180kPa EOAT Grippers

,

ISC airbag internal bracing fixture


Product Description

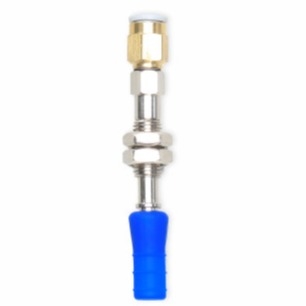

EOAT Gripper - ISC S Series

ISC Inner Soft Clamp User Manual V3.0.pdf

Product Description

ISC airbag internal bracing fixture is an innovational soft fixture, designed with inspiration of puffer fish self-defending status. Through inflating air with certain pressure, the airbag can expand and realize internal bracing grasping.Since the contact part with workpiece is soft silicon rubber, after pressurized, an "air matress" can be generated between soft silicon rubber and rigid bracket.



This makes contact stress uniform and the workpiece is not easy to be damaged. In addition, the pressure of air inflated can be modified to control the range of airbag inflation and contact stress with workpiece. Therefore, flexibility of grasping can be significantly increased.






Parameter

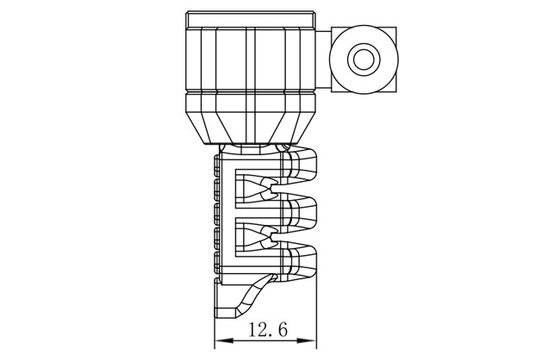

Appearance Parameters
Model Airbag height H Width A Contact interface diameter D Contact interface height B Total height M
SRT-ISC-S20.5 37 20.7 20.5 25.9 H+105





Inflation Outer Radius
Model Normal diameter(mm) Ultimate expansion diameter(mm) Ultimate air pressure(kPa) Ultimate load(g)
SRT-ISC-P20.5 20.5 29.2 180 3300




Applications



The gripper performs handling work in the form of gas expansion, in actual application scenarios, it can be used for bottle-shaped, ring-shaped, objects with holes and highly flexible items, such as glass test tubes, antique vases, drinks in glass bottles and so on.
