Screen Display IP53 Pneumatic Controller , Industrial Robot Controller

Certification
China Beijing Soft Robot Tech Co.,Ltd certification
China Beijing Soft Robot Tech Co.,Ltd certification
I'm Online Chat Now

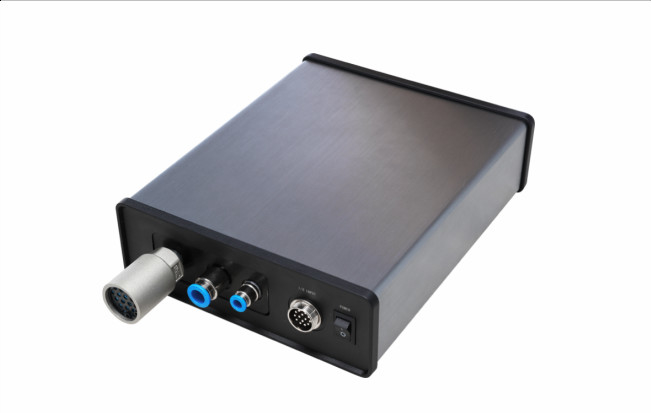

Screen Display IP53 Pneumatic Controller , Industrial Robot Controller

Screen Display IP53 Pneumatic Controller , Industrial Robot Controller
Screen Display IP53 Pneumatic Controller , Industrial Robot Controller Screen Display IP53 Pneumatic Controller , Industrial Robot Controller Screen Display IP53 Pneumatic Controller , Industrial Robot Controller

Large Image :  Screen Display IP53 Pneumatic Controller , Industrial Robot Controller

Product Details:
Place of Origin: Beijing,China
Brand Name: Pneumatic Soft Gripper
Certification: FDA
Model Number: Pneumatic Controller-SCB-20PRO
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD+($99-$999)+1
Packaging Details: Carton
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: N+N+per 1 year

Screen Display IP53 Pneumatic Controller , Industrial Robot Controller

Description
Name: Pneumatic Controller Model: Pneumatic Controller-SCB-20PRO
Certification: FDA CE ISO Dimensions: 242*190*65mm
Application: Automobile Industry, Foodindustry, 3C, Medical Equipment, Etc Material: Food-grade Silica Gel
Net Weight: 2.8kg Protection Level: IP53
Highlight:

Screen Display Pneumatic Controller

,

IP53 Pneumatic Controller

,

ISO industrial robot controller



Pneumatic Controller-SCB-20PRO



Product Description

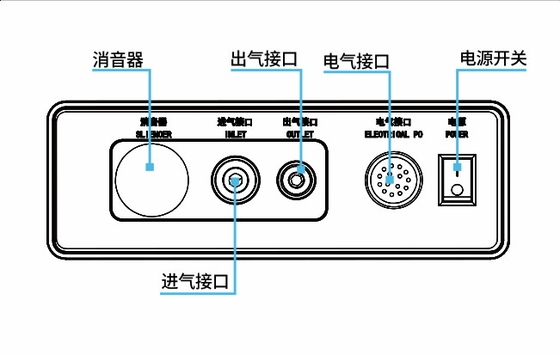

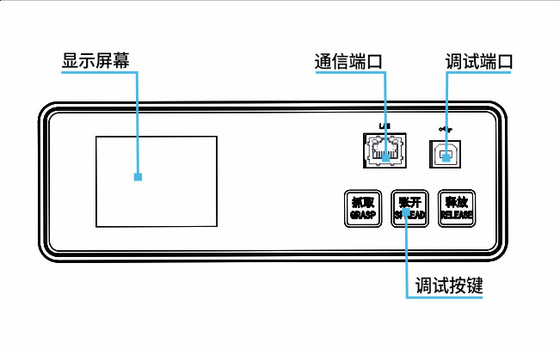

SCB-20PRO is a new generation of controller supporting several communication modes, whose appearance and size are superior to the previous generation. The screen display is used to realize the display function and the aviation plug is used as electric interface to improve wiring reliability and protection degree so that SCB-20PRO supports direct electrical connection with UR robot. The anti-electromagnetic ability of the power supply has been optimized to pass CE certification.


Parameter


Dimensions 242*190*65mm
Net weight 2.8kg
Rated voltage DC24V±10%
Current consumption 2A
Input air pressure 0.5~0.7Mpa, Flow>200L/min
Output air pressure -70~100kPa

Positive output flow

130L/min
Negative output flow 60L/min
Protection level IP53
Air source requirement

Squeeze air conforming

ISO 8573-1:2010 [7:4:4]
