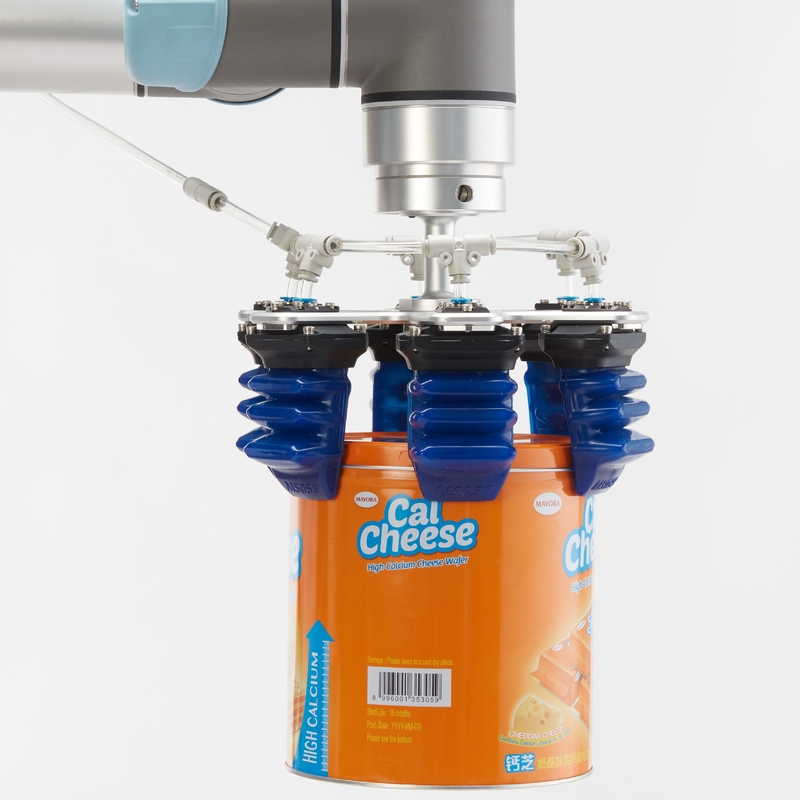

3.2kg Soft Robot Gripper For Multi Scenario Production Line

Certification
China Beijing Soft Robot Tech Co.,Ltd certification
China Beijing Soft Robot Tech Co.,Ltd certification
I'm Online Chat Now

3.2kg Soft Robot Gripper For Multi Scenario Production Line

3.2kg Soft Robot Gripper For Multi Scenario Production Line
3.2kg Soft Robot Gripper For Multi Scenario Production Line
3.2kg Soft Robot Gripper For Multi Scenario Production Line 3.2kg Soft Robot Gripper For Multi Scenario Production Line

Large Image :  3.2kg Soft Robot Gripper For Multi Scenario Production Line

Product Details:
Place of Origin: Beijing,China
Brand Name: Soft Robot Gripper
Certification: FDA CE ISO
Model Number: SFG-FMA6-T4040
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Depending on the order quantity

3.2kg Soft Robot Gripper For Multi Scenario Production Line

Description
Name: Soft Robot Gripper Model: SFG-FMA6-T4040
Certification: FDA CE ISO Load: 3200g
Application: Automobile Industry, Foodindustry, 3C, Medical Equipment, Etc Material: Food-grade Silica Gel
Smax: 23mm Weight: 769g
High Light:

FDA 3.2kg Soft Robot Gripper

,

Food Safety 3200g Soft Robot Gripper

,

3200g flexible gripper



Soft Robot Gripper - SFG-FMA6-T4040



Product Description

Soft robot gripper is the smarter pick and place solution, suitable for multi-scenario production line. The SFG series of soft flexible grippers launched by SRT soft robot gripper has soft pneumatic fingers that can adaptively cover target objects for automatic and non-destructive sorting. It is suitable for grabbing fragile, and irregularly shaped objects, and is effective help companies to increase product qualification rate.

Parameter
Model Dimensions(mm) Gripping Capacity
Wb Wn Wm Hb Gn Lb Lt Ln L Smax Ymax

Dn+2Smax

(mm)

SFG-FMA6-T4040 173.4 40 62 168.7 45-101 69 63.5 59 40 23 20.5 45-147


Advantage

Soft, Safe, Durable, Food Safety

Has passed FDA, CE, ISO9001 certification

One gripper for complex gripping problem
Heavy cargo handling small expert
Not damage the product packaging and the contents inside
Pick and place operations in many industrial production

Automate with SRT soft robot gripper



Product Detail

Standard working lifespan: ≥3,000,000 times

Load: 3200g

Maximum working pressure: 100 kPa

Air tube diameter: 6 mm

Weight: 769g

3.2kg Soft Robot Gripper For Multi Scenario Production Line 0


Applications

SRT flexible gripper has various models, aiming at different shapes, sizes and weights, it has launched targeted solutions:

1. Ball-like and flat objects should choose circular distributed grippers. Long and slim objects should select symmetric distributedgrippers.

2. Smaller objects should select tight grippers with short fingers. Bigger objects should select adjustable grippers with longer fingers.

3. Lighter objects can select small grippers with less fingers. Heavier objects can select big grippers with more fingers.
