Self Adaption 1200g Soft Gripper Used In Robots

Certification
China Beijing Soft Robot Tech Co.,Ltd certification
China Beijing Soft Robot Tech Co.,Ltd certification
I'm Online Chat Now

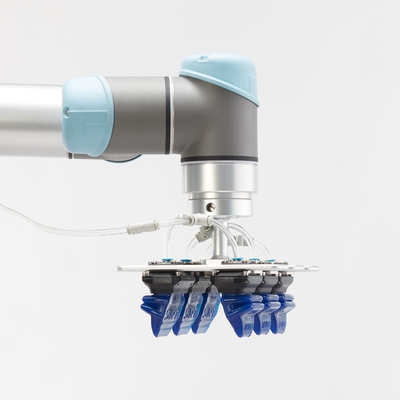

Self Adaption 1200g Soft Gripper Used In Robots

Self Adaption 1200g Soft Gripper Used In Robots
Self Adaption 1200g Soft Gripper Used In Robots

Large Image :  Self Adaption 1200g Soft Gripper Used In Robots

Product Details:
Place of Origin: Beijing,China
Brand Name: Soft Robot Gripper
Certification: FDA CE ISO
Model Number: SFG-FMA6-T2030
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Depending on the order quantity

Self Adaption 1200g Soft Gripper Used In Robots

Description
Name: Soft Robot Gripper Model: SFG-FMA6-T2030
Certification: FDA CE ISO Load: 1200g
Application: Automobile Industry, Foodindustry, 3C, Medical Equipment, Etc Material: Food-grade Silica Gel
Smax: 15mm Weight: 493g
High Light:

Self Adaption 1200g soft gripper used in robot

,

1200g soft gripper used in robots

,

FDA soft gripper robot



Soft Robot Gripper - SFG-FMA6-T2030



Product Description

The SFG series of soft flexible grippers launched by SRT soft robot has soft pneumatic fingers that can adaptively cover target objects for automatic and non-destructive sorting. It is suitable for grabbing fragile, and irregularly shaped objects, and is effective help companies to increase product qualification rate.

Parameter
Model Dimensions(mm) Gripping Capacity
Wb Wn Wm Hb Gn Lb Lt Ln L Smax Ymax

Dn+2Smax

(mm)

SFG-FMA6-T2030 173.4 20 62 168.7 52-108 69 63.5 44 30 15 13.7 52-138


Advantage

Soft, Safe, Durable, Food Safety

Has passed FDA, CE, ISO9001 certification

One gripper for complex gripping problem
Heavy cargo handling small expert
Not damage the product packaging and the contents inside
Pick and place operations in many industrial production

Automate with SRT soft robot gripper



Product Detail

Standard working lifespan: ≥3,000,000 times

Load: 1200g

Maximum working pressure: 100 kPa

Air tube diameter: 6 mm

Weight: 493g

Self Adaption 1200g Soft Gripper Used In Robots 0


Applications

SRT flexible gripper has various models, aiming at different shapes, sizes and weights, it has launched targeted solutions:

1. Ball-like and flat objects should choose circular distributed grippers. Long and slim objects should select symmetric distributedgrippers.

2. Smaller objects should select tight grippers with short fingers. Bigger objects should select adjustable grippers with longer fingers.

3. Lighter objects can select small grippers with less fingers. Heavier objects can select big grippers with more fingers.

Wholesale high quality new stock pneumatic soft robot gripper



About us

Soft Robot Tech Co., Ltd. (SRT) is an innovative technology company based on software robotics technology. Its headquarters is located in Tianji Zhigu, Yizhuang Economic Development Zone, Beijing. Its R & D personnel are from Harvard University, Northeastern University of American, Beihang University and other well-known universities. SRT is committed to the promotion and application of soft robot technology in the field of industrial automation, providing customers with simple and reliable flexible grasping solutions for complex products, and continuously creating considerable value for users. It is a leading equipment manufacturer and service provider in China in terms of machine vision and industrial intelligence, it has several core technologies and independent intellectual property rights in the fields of visual positioning, visual measurement, visual inspection and visual recognition, and has been rated as a leading talent enterprise in Suzhou in 2020. It also focuses on the field of non-standard automation, and its main business is to provide intelligent manufacturing solutions for traditional manufacturing industry.



Headquarters: Beijing

4 Offices: Suzhou, Shenzhen, Zhangjiagang, Yongkang

16 Overseas agents: Japan, South Korea, Thailand, Malaysia, Singapore, France, Spain, Poland, Denmark, Netherlands, Belgium, Luxembourg, Colombia, Portugal, Canada,Bulgaria.

2 Subsidiaries in China
