Product Details:
|
| Name: | Soft Robot Gripper | Model: | SFG-FMA6-M3064 |
|---|---|---|---|
| Certification: | FDA CE ISO | Load: | 1200g |
| Application: | Automobile Industry, Foodindustry, 3C, Medical Equipment, Etc | Material: | Food-grade Silica Gel |
| Smax: | 42mm | Weight: | 816g |
| High Light: | 1200g Flexible Robot Gripper,42mm Flexible Robot Gripper,ISO Soft Robotic Gripper |
||
Soft Robot Gripper - SFG-FMA6-M3064
SFG Soft Finger Gripper User Manual V1.0.pdf
Product Description
SFG Soft Flexible Gripper is an innovative flexible robotic gripper that mimics the grasping action of human hands and is bionic design. Good compatibility, multiple product types, gentle movements, high flexibility and lossless grasping.

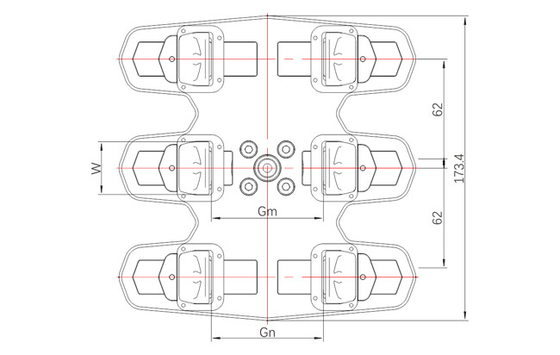

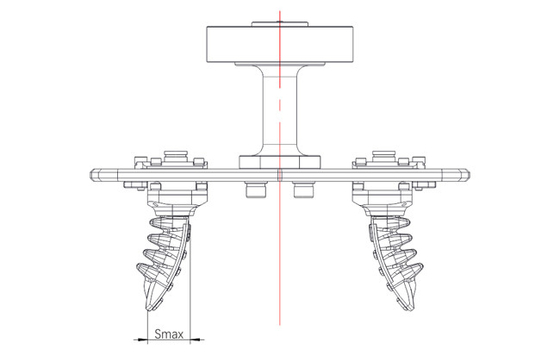

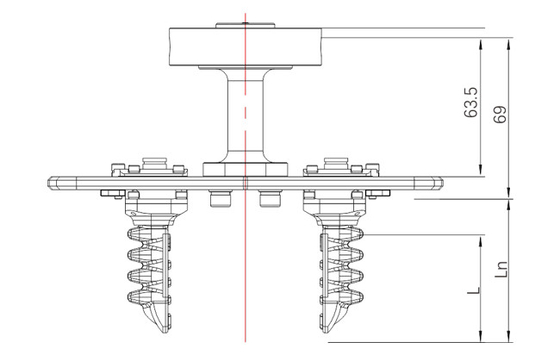

| Model | Dimensions(mm) | Gripping Capacity | ||||||||||
| Wb | Wn | Wm | Hb | Gn | Lb | Lt | Ln | L | Smax | Ymax |
Dn+2Smax (mm) |
|
| SFG-FMA6-M3064 | 173.4 | 30 | 62 | 168.7 | 54-103 | 69 | 63.5 | 79 | 64 | 42 | 42 | 54-187 |
Advantage
Soft, Safe, Durable, Food Safety
Has passed FDA, CE, ISO9001 certification
One gripper for complex gripping problem
Heavy cargo handling small expert
Not damage the product packaging and the contents inside
Pick and place operations in many industrial production
Automate with SRT soft robot gripper
Product Detail
Standard working lifespan: ≥3,000,000 times
Load: 1200g
Maximum working pressure: 100 kPa
Air tube diameter: 6 mm
Weight: 816g
Applications
SRT flexible gripper has various models, aiming at different shapes, sizes and weights, it has launched targeted solutions:
1. Ball-like and flat objects should choose circular distributed grippers. Long and slim objects should select symmetric distributedgrippers.
2. Smaller objects should select tight grippers with short fingers. Bigger objects should select adjustable grippers with longer fingers.
3. Lighter objects can select small grippers with less fingers. Heavier objects can select big grippers with more fingers.
