Soft Surface Flexible Robot Gripper Without Scratch To Circuit Board

Certification
China Beijing Soft Robot Tech Co.,Ltd certification
China Beijing Soft Robot Tech Co.,Ltd certification
I'm Online Chat Now

Soft Surface Flexible Robot Gripper Without Scratch To Circuit Board

Soft Surface Flexible Robot Gripper Without Scratch To Circuit Board
Soft Surface Flexible Robot Gripper Without Scratch To Circuit Board Soft Surface Flexible Robot Gripper Without Scratch To Circuit Board

Large Image :  Soft Surface Flexible Robot Gripper Without Scratch To Circuit Board

Product Details:
Place of Origin: Beijing,China
Brand Name: Soft Robot Gripper
Certification: FDA CE ISO
Model Number: SFG-FCA4-M3046
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Depending on the order quantity

Soft Surface Flexible Robot Gripper Without Scratch To Circuit Board

Description
Name: Soft Robot Gripper Model: SFG-FCA4-M3046
Certification: FDA CE ISO Load: 700g
Application: Automobile Industry, Foodindustry, 3C, Medical Equipment, Etc Material: Food-grade Silica Gel
Smax: 21mm Weight: 560g
High Light:

21mm Flexible Robot Gripper

,

700g Flexible Robot Gripper

,

silica gel Soft Robot Gripper



Pneumatic Soft Gripper - SFG-FCA4-M3046



Product Description

The soft flexible gripper-SFG series in the scheme has a soft surface material and will not scratch the appearance of the circuit board. The soft flexible gripper is also lighter in weight, which reduces the load of the robotic arm while saving space on the production line.

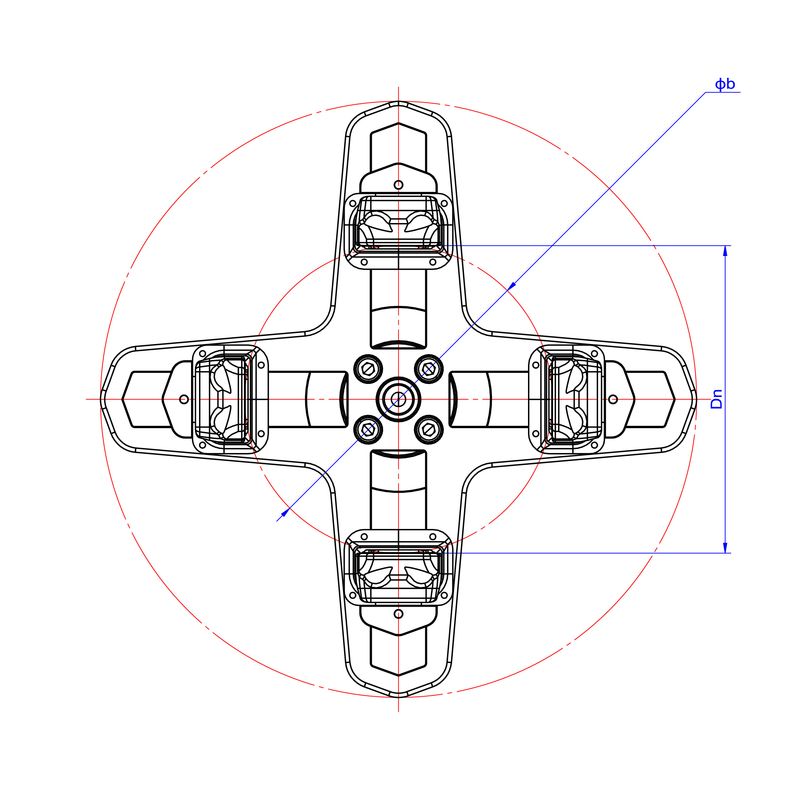

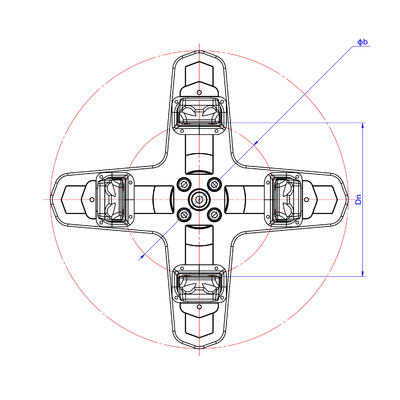

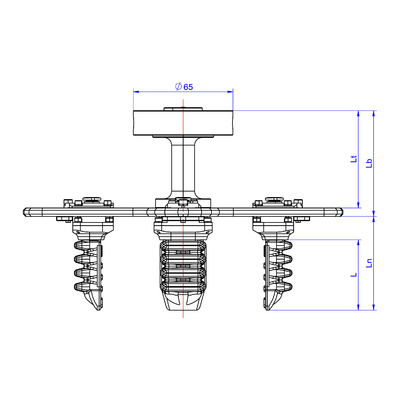

Parameter
Model Dimensions(mm) Gripping Capacity
φb Wn Dn Lb Lt Ln L Smax Ymax

Dn+2Smax

(mm)

SFG-FCA4-M3046 208.5 30 50-147 69 63.5 61 46 21 22.6 50-189


Advantage

Soft, Safe, Durable, Food Safety

Has passed FDA, CE, ISO9001 certification

One gripper for complex gripping problem
Heavy cargo handling small expert
Not damage the product packaging and the contents inside
Pick and place operations in many industrial production

Automate with SRT soft robot gripper



Product Detail

Standard working lifespan: ≥3,000,000 times

Load: 700g

Maximum working pressure: 100 kPa

Air tube diameter: 6 mm

Weight: 560g

Soft Surface Flexible Robot Gripper Without Scratch To Circuit Board 0


Applications

SRT flexible gripper has various models, aiming at different shapes, sizes and weights, it has launched targeted solutions:

1. Ball-like and flat objects should choose circular distributed grippers. Long and slim objects should select symmetric distributedgrippers.

2. Smaller objects should select tight grippers with short fingers. Bigger objects should select adjustable grippers with longer fingers.

3. Lighter objects can select small grippers with less fingers. Heavier objects can select big grippers with more fingers.
