3000g Pneumatic Soft Gripper , End Of Arm Tooling Grippers

3000g Pneumatic Soft Gripper , End Of Arm Tooling Grippers
3000g Pneumatic Soft Gripper , End Of Arm Tooling Grippers 3000g Pneumatic Soft Gripper , End Of Arm Tooling Grippers

Large Image :  3000g Pneumatic Soft Gripper , End Of Arm Tooling Grippers

Product Details:
Place of Origin: Beijing,China
Brand Name: Soft Robot Gripper
Certification: FDA CE ISO
Model Number: SFG-FCA4-M5043
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Depending on the order quantity

3000g Pneumatic Soft Gripper , End Of Arm Tooling Grippers

Description
Name: Soft Robot Gripper Model: SFG-FCA4-M5043
Certification: FDA CE ISO Load: 3000g
Application: Automobile Industry, Foodindustry, 3C, Medical Equipment, Etc Material: Food-grade Silica Gel
Smax: 20mm Weight: 796g
High Light:

3000g Pneumatic Soft Gripper

,

20mm 3000g Pneumatic Soft Gripper

,

FDA 3000g end of arm tooling grippers



Pneumatic Soft Gripper - SFG-FCA4-M5043



Product Description

With a Right EOAT solution is important. SRT intelligent EOAT solution include daptive grasping systems combine with SRT flexible grippers for food.

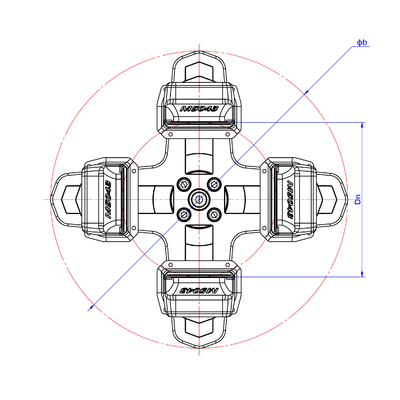

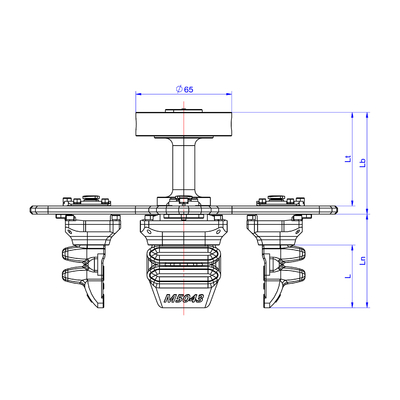

Parameter
Model Dimensions(mm) Gripping Capacity
φb Wn Dn Lb Lt Ln L Smax Ymax

Dn+2Smax

(mm)

SFG-FCA4-M5043 208.5 50 70-141 69 63.5 64 53 20 20.9 70-181


Advantage

Soft, Safe, Durable, Food Safety

Has passed FDA, CE, ISO9001 certification

One gripper for complex gripping problem
Heavy cargo handling small expert
Not damage the product packaging and the contents inside
Pick and place operations in many industrial production

Automate with SRT soft robot gripper



Product Detail

Standard working lifespan: ≥3,000,000 times

Load:3000g

Maximum working pressure: 100 kPa

Air tube diameter: 6 mm

Weight: 796g

3000g Pneumatic Soft Gripper , End Of Arm Tooling Grippers 0


Applications

SRT flexible gripper has various models, aiming at different shapes, sizes and weights, it has launched targeted solutions:

1. Ball-like and flat objects should choose circular distributed grippers. Long and slim objects should select symmetric distributedgrippers.

2. Smaller objects should select tight grippers with short fingers. Bigger objects should select adjustable grippers with longer fingers.

3. Lighter objects can select small grippers with less fingers. Heavier objects can select big grippers with more fingers.
