Soft Robotic Clamp

Soft Robotic Clamp

920g Robotic Clamp

Soft Robotic Clamp

ISC robot clamp

Place of Origin:

Beijing,China

Brand Name:

Soft Robot Gripper

Certification:

FDA CE ISO

Model Number:

ISC-P9-P1

Contact Us
Request A Quote
Product Details
Name:
Soft Robot Gripper
Model:
ISC-P9-P1
Certification:
FDA CE ISO
Load:
920g
Limit Expansion Outer Diameter:
11.7mm
Application:
Automobile Industry, Foodindustry, 3C, Medical Equipment, Etc
Material:
Food-grade Silica Gel
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Carton Package
Delivery Time
2-3 work days
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
Depending on the order quantity
RELATED PRODUCTS
Contact Us
Contact Now
Product Description



Robotic Clamp - ISC-P9-P1

ISC Inner Soft Clamp User Manual V3.0.pdf



Product Description

Due to contacting part with workpiece is soft silicon rubber, after adding pressure, there will be a“air cushion” layer between rigid supporting and contact surface, making stress uniform and not likely to damage the workpiece. In addition, input air pressure can be adjusted to control the extension of airbag and stress contacting with workpiece, so that significantly increase softness of grasping system.


Parameter

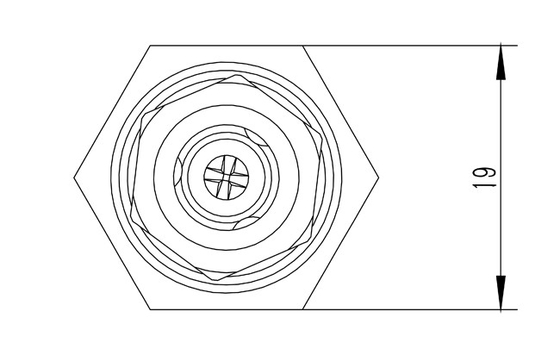

Model Dimensions Product Detail

H

(mm)

A

(mm)

D

(mm)

B

(mm)

N

(mm)

Pressure Range

(kPa)

Expansion Outer Diameter

(mm)

Load

(g)

Working Lifespan

(times)

Responding Speed

(s)

ISC-P9-P1 23.3 10 9 12.6 73.3 0-240 11.7 920 >100,000 >0.3


Advantage

Soft, Safe, Durable, Food Safety

Has passed FDA, CE, ISO9001 certification

One gripper for complex gripping problem
Heavy cargo handling small expert
Not damage the product packaging and the contents inside
Pick and place operations in many industrial production

Automate with SRT soft robot gripper



Product Detail

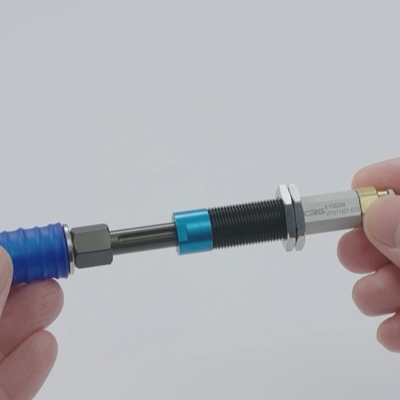

Soft Robotic Clamp 0


Applications

SRT Robotic Clamp - ISC Series has various models, aiming at different shapes, sizes and weights, it has launched targeted solutions:

Workpiece of bottle shape, ring shape and with holes, high softness.

Soft Robotic Clamp 1

Soft Robotic Clamp 2
