IP42 dia42.5mm adsorption surface Van Der Waals Suction Pads

Basic Information
Place of Origin: Beijing,China
Brand Name: Soft Robot Gripper
Model Number: VFC Series Van der Waals Pads
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Depending on the order quantity
Detail Information
Certification: FDA CE ISO Name: ISC Inner Support Clamp
Load: 1000g Material: Food-grade Silica Gel
Application: Automobile Industry, Foodindustry, 3C, Medical Equipment, Etc Weight: 290g
High Light:

Dia42.5mm Adsorption Surface Suction Pads

,

IP42 Suction Pads

,

Van Der Waals Suction Cups


Product Description

VFC Series Van der Waals Pads,Structural innovation





VFC Series Van der Waals Pads



Product Description

SRT continues to develop and innovate in special polymer materials and in surface technics that can reach the accuracy of micron order, aiming to create a strong intermolecular forces between suction cups and smooth surfaces that can reach 0.5 kg/cm². As a combination of advantages, VFC series of Van der Waals Pads was launched. This product can hold the surface of the workpiece without leaving a mark. It is ideal for gripping cardboard, glass, circuit boards, metal, plastic, smooth packaging, etc.

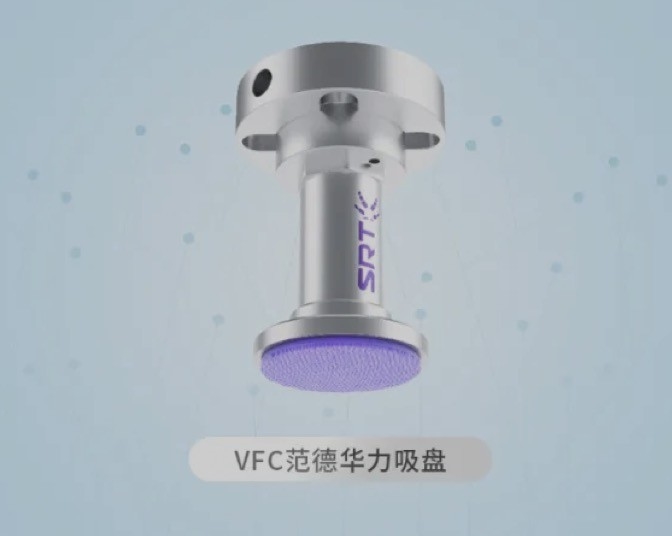

IP42 dia42.5mm adsorption surface Van Der Waals Suction Pads 0



Product Advantage



Structural innovation

VFC series Van der Waals Pads has a unique surface structure with a contact surface made of millions of fibrous bundles, which increases the self-adaptability and suction force of the cups. Van der Waals Pads are designed to hold smooth or porous workpieces and provide a strong suction force.



  value unit
Maximum payload 1 kg
Pre-loading 5-40 N
Diameter of adsorption surface 42.5 mm
Overall weight 290 g
Operating temperature 0-50
Storage temperature 0-50
Retentivity in power failure Yes
IP rating IP42
Material of suction cup Silica gel
Abrasion resistance Depends on the surface roughness of workpiece
Replacement interval >50000bout Depends on the working environment
Cleaning method 1. Silicone roller
2. Isopropyl ketone + dust free cloth
Description of applicable surfaces The smoother the surface of the object and the more effective contact area at the micro level, the greater the load. And a payload force can be obtained with only a small preload force.
The rougher the surface of the object and the less effective contact area at the micro level, the smaller the load. And a larger preload force is required to obtain a payload force. Besides, rough surfaces increase the wear of the suction cup and lead to a shorter product life.
