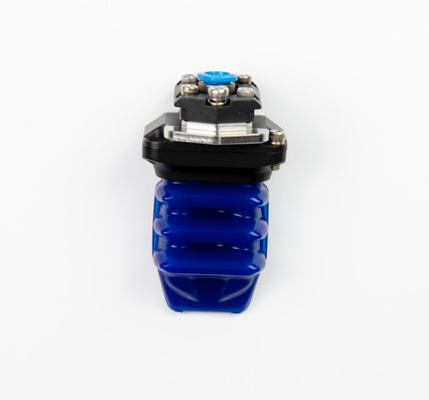

Flexible Soft Robot Finger With Special Airbag Structure

Basic Information
Place of Origin: Beijing,China
Brand Name: Soft Robot Gripper
Certification: FDA CE ISO
Model Number: M3037
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Negotiation
Detail Information
Weight: 57g Application: Automobile Industry, Foodindustry, 3C, Medical
High Light:

Flexible Soft Robot Finger


Robot Finger With Special Airbag Structure


Robotic Finger With Special Airbag Structure

Product Description

M3037+ soft and flexible+ soft robot fingers


Soft robot fingers with special airbag structure


In sorting operations, steel grippers are difficult to control and are susceptible to the material and shape of the object. Therefore, steel grippers cannot be used for highly flexible and delicate operations.SRT introduces a soft robot with soft, pneumatic fingers that can adaptively wrap around the target object for automated, non-destructive sorting. The product is suitable for gripping fragile, breakable and irregularly shaped objects, effectively helping companies to improve product qualification rates.

W/mm 30
L/mm 37
Ln/mm 53
T/mm 18.5
X/mm 7.7
A/mm 38
B/mm 26.5
C/mm 37.1
Smax/mm 13
Ymax/mm 14.5
weight/g 57
fingertip thrust/N 3.3
load coefficient of individual finger/g vertical 170
pack 300
working speed/cpm ≤110
product life/bout ≥300W
working pressure -100~100kPa
Connection diameter 6mm
