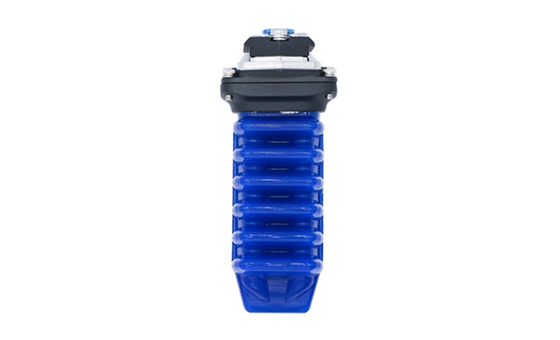

High Compatibility Pneumatic Soft Robotic Finger

High Compatibility Pneumatic Soft Robotic Finger
High Compatibility Pneumatic Soft Robotic Finger
High Compatibility Pneumatic Soft Robotic Finger High Compatibility Pneumatic Soft Robotic Finger

Large Image :  High Compatibility Pneumatic Soft Robotic Finger

Product Details:
Place of Origin: Beijing,China
Brand Name: Soft Robot Gripper
Certification: FDA CE ISO
Model Number: M3064
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Negotiation

High Compatibility Pneumatic Soft Robotic Finger

Description
Weight: 66g Application: Automobile Industry, Foodindustry, 3C, Medical
High Light:

High Compatibility Soft Robotic Finger

,

Pneumatic Soft Robotic Finger

,

High Compatibility Robot Finger

M3064+ wide range of application + soft robot fingers



Soft robot fingers that do not require frequent device changes



The soft robotic fingers are pneumatically driven and possess a high degree of adaptability. By controlling the air intake, different movement designs, forces and precision can be adjusted when gripping different products. It has the advantages of high speed, high efficiency, clean and safe, low cost and easy maintenance. No need for pre-adjustment according to the size and shape of the object, one "claw" is compatible with many products.

W/mm 30
L/mm 64
Ln/mm 79
T/mm 18.5
X/mm 7.7
A/mm 38
B/mm 26.5
C/mm 37.1
Smax/mm 42
Ymax/mm 42
weight/g 66
fingertip thrust/N 2
load coefficient of individual finger/g vertical 110
pack 340
working speed/cpm ≤110
product life/bout ≥300W
working pressure -100~100kPa
Connection diameter 6mm



High Compatibility Pneumatic Soft Robotic Finger 0
