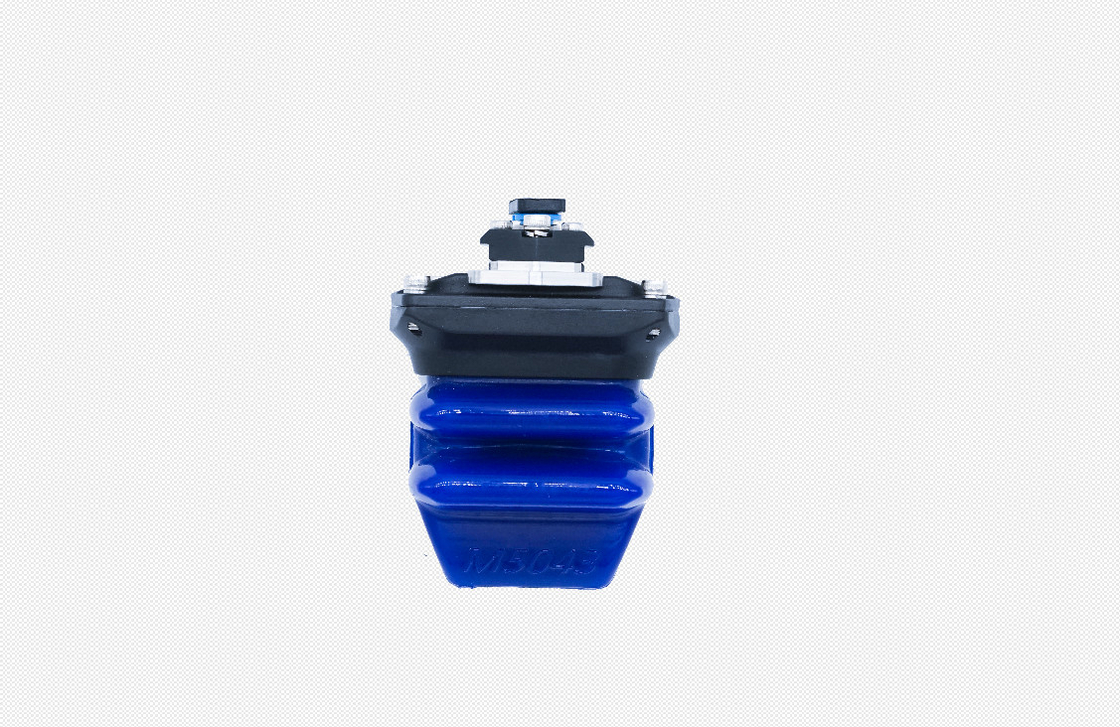

Pneumatic Actuated Food Grade Silicone Robot Finger With Flexible Structure

Pneumatic Actuated Food Grade Silicone Robot Finger With Flexible Structure

Food Grade Silicone Robot Finger

Pneumatic Actuated Robot Finger

Flexible Structure Robotic Finger

Place of Origin:

Beijing,China

Brand Name:

Soft Robot Gripper

Certification:

FDA CE ISO

Model Number:

M5043

Contact Us
Request A Quote
Product Details
Weight:
119g
Application:
Automobile Industry, Foodindustry, 3C, Medical
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Carton Package
Delivery Time
2-3 work days
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
Negotiation
Product Description

M5043 + soft structure + soft robot fingers



Soft robot fingers with flexible structure



Traditional robotic hands have poor interaction, low adaptability and flexibility, making it difficult to achieve non-destructive handling of objects. The soft robot fingers are made of food-grade silicone material and have high adaptability and safety, can unfold operations in tight spaces as well. The soft fingers are driven by conventional pneumatic actuators. The soft gripper with flexible structure is suitable for gripping shaped and fragile objects. This product fills a gap in the market for the sorting and packaging of shaped and fragile objects.



W/mm 50
L/mm 43
Ln/mm 64
T/mm 28.5
X/mm 11
A/mm 59
B/mm 37.5
C/mm 43.8
Smax/mm 20
Ymax/mm 20.9
weight/g 119
fingertip thrust/N 11.3
load coefficient of individual finger/g vertical 580
pack 850
working speed/cpm ≤80
product life/bout ≥300W
working pressure -100~100kPa
Connection diameter 6mm
