| Place of Origin: | Beijing,China |
|---|---|
| Brand Name: | Soft Robot Gripper |
| Certification: | FDA CE ISO |
| Model Number: | N3034 |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Carton Package |
| Delivery Time: | 2-3 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | Negotiation |
| Weight: | 44.3g | Application: | Automobile Industry, Foodindustry, 3C, Medical |
|---|---|---|---|
| High Light: | Highly Compatible Robot EOAT,Robot End Of Arm Tooling EOAT,Soft End Of Arm Tooling EOAT |
||

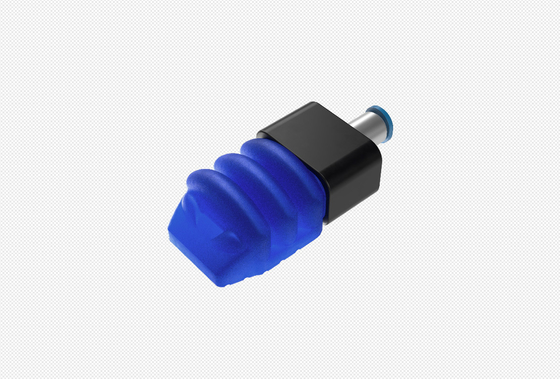

N3034 + highly compatible + soft robot fingers
Soft robot fingers that can operate freely in boiling water at 120°C
If the appropriate end-of-arm tooling (EOAT) is not applied, robotics is of little or no value to the production process. In fact, choosing the wrong EOAT can increase downtime and reduce productivity.
Soft robot fingers is powerfully compatible and will not replace your job or replace humans, it is designed to help you solve repetitive, dangerous and boring tasks. Soft robot fingers, made to solve the challenge of gripping and handling shaped and fragile objects!
| W/mm | 30 | |
| L/mm | 34 | |
| Ln/mm | 53.5 | |
| T/mm | 21.5 | |
| X/mm | 1.5 | |
| A/mm | 30 | |
| B/mm | 19 | |
| Smax/mm | 15 | |
| Ymax/mm | 19 | |
| weight/g | 44.3 | |
| fingertip thrust/N | 7 | |
| load coefficient of individual finger/g | vertical | 300 |
| pack | 500 | |
| working speed/cpm | <110 | |
| product life/bout | >300W | |
| working pressure | -60～100kPa | |
| Connection diameter | 6mm | |
