Product Details:
|
| Weight: | 543g | ||
|---|---|---|---|
| High Light: | 2070kg Load Soft Robot Gripper,Electronic Products Soft Robot Gripper,2070kg Load Soft Robotics Gripper |
||
SFG-FNC3-N4036+ cost reduction and efficiency increase + Soft robot gripper
SFG-FNC3-N4036+ cost reduction and efficiency increase + Soft robot gripper

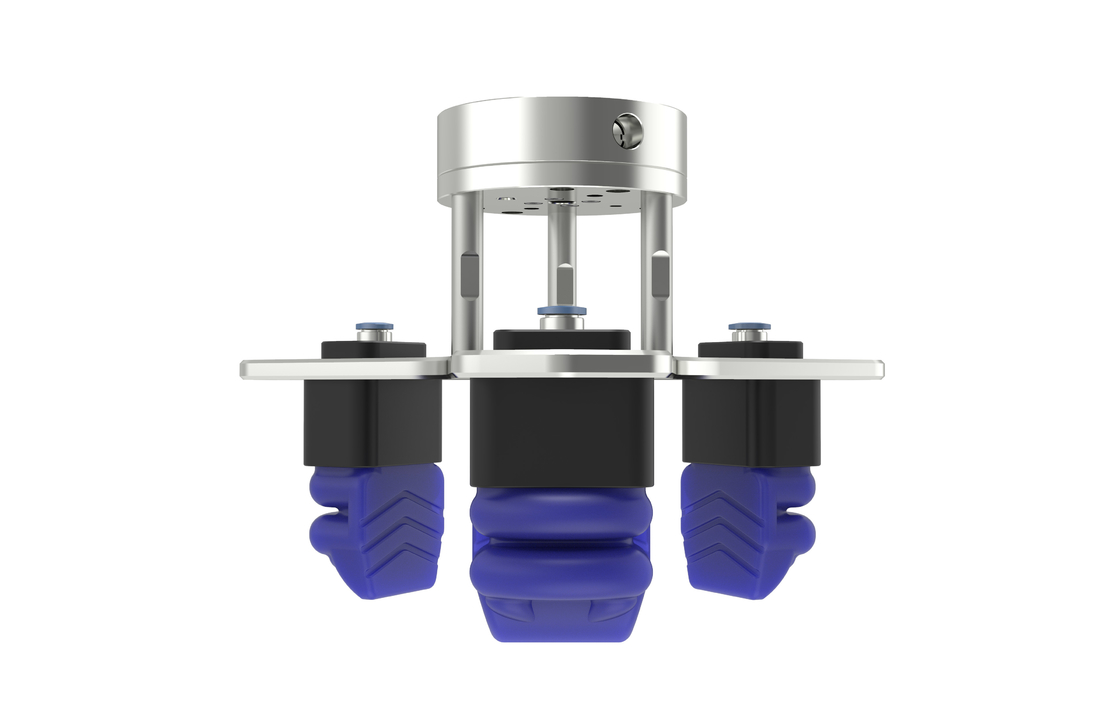

Soft robot gripper that can solve the problem of mass automated production of shaped and fragile items
Through research into the deformation mechanism of flexible materials, the R&D team at Beijing Soft Robot Technology Company has designed a flexible gripper that can grip workpieces of different sizes, shapes and weights with one single gripper. The flexible gripper has soft pneumatic 'fingers' that can adaptively wrap around the target object without the need to know its exact shape and size in advance. As the soft robot is made up of flexible materials, the gripping action does not cause any damage to the workpiece, making it particularly suitable for fragile or scratch-prone workpieces.
| φb | 200 |
| Wn | 40 |
| Dn | 22-133 |
| Lb | 68.2 |
| Lt | 62.7 |
| Ln | 59.5 |
| L | 35.5 |
| Smax | 9 |
| Ymax | 13 |
| workpiece dimension range | 22-151 |
| load(g) | 2070 |
| product weight(g) | 543 |
| maximum working pressure | 100kPa |
| product life | 300w |
