Elastic Body Finite Element Simulation Soft Robot Gripper

Elastic Body Finite Element Simulation Soft Robot Gripper

Finite Element Simulation Soft Robot Gripper

Elastic Body Soft Robot Gripper

Finite Element Simulation Soft Robotic Gripper

Place of Origin:

Beijing,China

Brand Name:

Soft Robot Gripper

Certification:

FDA CE ISO

Model Number:

SFG-FNC3-N4036

Contact Us
Request A Quote
Product Details
Weight:
642g
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiation
Packaging Details
Carton Package
Delivery Time
2-3 work days
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
Negotiation
Product Description

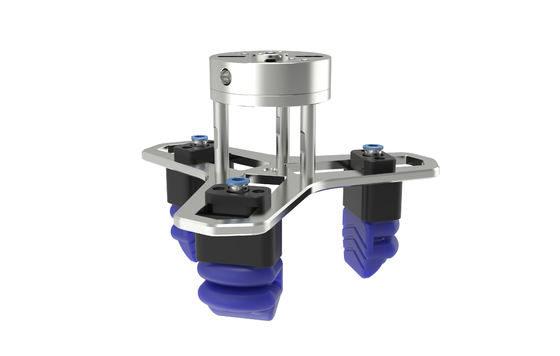

SFG-FNC3-N4036 + high elasticity + Soft robot gripper



Soft robot gripper with elastic body finite element simulation technology



For the design of the soft robot structure, SRT has established its own laboratory for material mechanics and structural mechanics, and its dual-channel soft robot structure has been awarded an international patent. The core technology underlying this structure is the elastomer finite element simulation technology developed through extensive experimental comparison and verification.

In terms of manufacturing processes, SRT has built its own production workshops and has mastered the full set of process paths for soft body robotics. The company has successfully increased the lifespan of soft robots from thousands of cycles to 3 million cycles, reducing labour costs by 90%.

In terms of material research and development, SRT has built its own material science laboratory and developed a variety of silicone materials through long-term experiments with the features such as long-life, wear-resistant and anti-static.



φb 200
Wn 40
Dn 38-133
Lb 68.2
Lt 62.7
Ln 59.5
L 35.5
Smax 9
Ymax 13
workpiece dimension range 38-151
load(g) 2760
product weight(g) 642
maximum working pressure 100kPa
product life 300w



Elastic Body Finite Element Simulation Soft Robot Gripper 0
