| Place of Origin: | Beijing,China |
|---|---|
| Brand Name: | Soft Robot Gripper |
| Certification: | FDA CE ISO |
| Model Number: | SFG-FNC6-N3034 |
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | Carton Package |
| Delivery Time: | 2-3 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | Negotiation |
| Weight: | 672g | ||
|---|---|---|---|
| High Light: | 3000g Load Soft Robotics Gripper,Shaped Objects Soft Robotics Gripper,3000g Load Soft Robot Gripper |
||

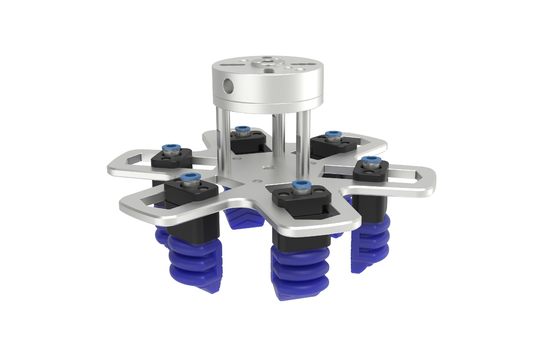

SFG-FNC6-N3034 + Easy Maintenance + Soft Robot Gripper
Soft robot gripper for gripping shaped, soft objects
The soft robotic gripper consists of a traction line and a tube for conveying compressed air, which is technically a pneumatic soft elastic end-effector. This gripper can pick up a raw egg without breaking it. The main applications are currently in automated food production, such as making pizza dough, grabbing fruit, assembling hamburgers, producing marshmallows, etc. The soft robot gripper can touch these foods like a human hand without affecting the shape or the taste.
| φb | 200 |
| Wn | 30 |
| Dn | 67-142 |
| Lb | 68.2 |
| Lt | 62.7 |
| Ln | 53.5 |
| L | 34 |
| Smax | 15 |
| Ymax | 19 |
| workpiece dimension range | 67-172 |
| load(g) | 3000 |
| product weight(g) | 672 |
| maximum working pressure | 100kPa |
| product life | 300w |
