7800g Load Pneumatic Highly Flexible Soft Robot Gripper

Certification
China Beijing Soft Robot Tech Co.,Ltd certification
China Beijing Soft Robot Tech Co.,Ltd certification
I'm Online Chat Now

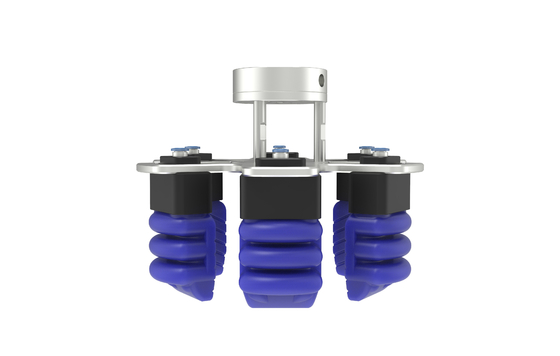

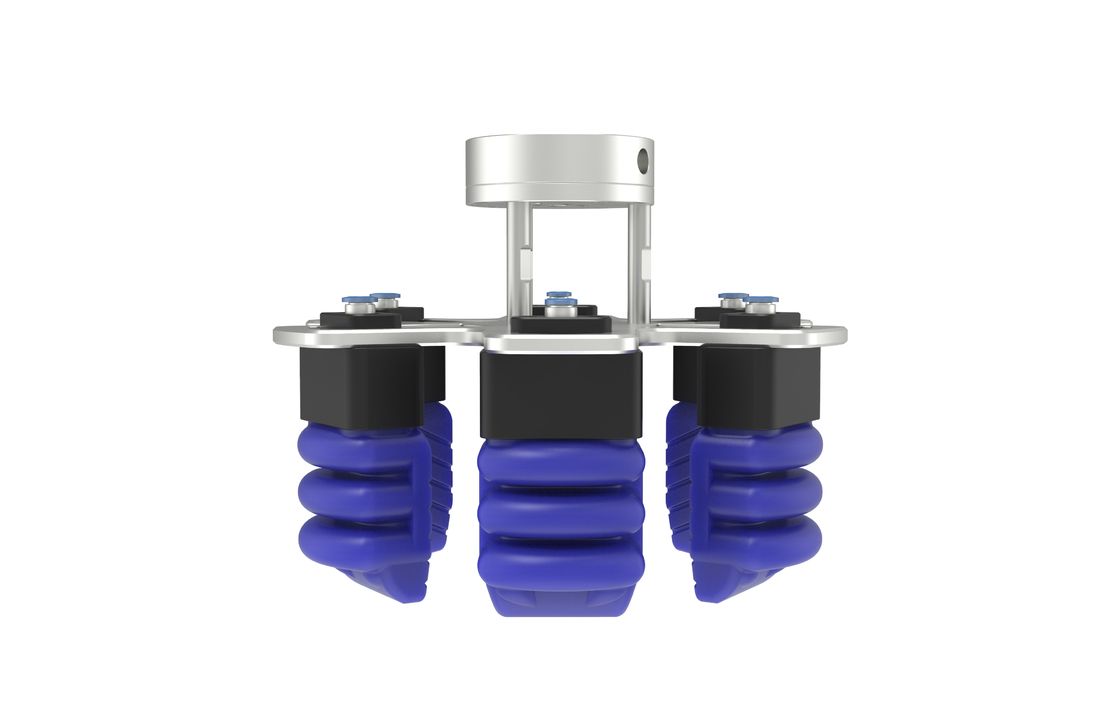

7800g Load Pneumatic Highly Flexible Soft Robot Gripper

7800g Load Pneumatic Highly Flexible Soft Robot Gripper
7800g Load Pneumatic Highly Flexible Soft Robot Gripper
7800g Load Pneumatic Highly Flexible Soft Robot Gripper 7800g Load Pneumatic Highly Flexible Soft Robot Gripper

Large Image :  7800g Load Pneumatic Highly Flexible Soft Robot Gripper

Product Details:
Place of Origin: Beijing,China
Brand Name: Soft Robot Gripper
Certification: FDA CE ISO
Model Number: SFG-FNC6-N5056
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton Package
Delivery Time: 2-3 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: Negotiation

7800g Load Pneumatic Highly Flexible Soft Robot Gripper

Description
Weight: 1133g
High Light:

7800g Load Soft Robot Gripper

,

Pneumatic Soft Robot Gripper

,

7800g Load Pneumatic Robot Gripper

SFG-FNC6-N5056+Highly Flexible+Soft Robot Gripper



Soft robot gripper with high speed and long life



The more common drive method for soft robot grippers is pneumatic, which requires a closed cavity structure inside the units of the soft hand. When driven by positive pressure, the units open and the gripper grips the object; when driven by negative pressure, the units contract and the gripper releases the object. At the same time, the R&D team has conducted systematic exploration in the selection and preparation of materials. After the proportioning of various highly elastic materials and the testing and blending of physical properties such as density, stress-strain, elasticity and toughness, the soft robot gripper is endowed with a stable gripping function with high speed and long life.



φb 200
Wn 50
Dn 84-134
Lb 68.2
Lt 62.7
Ln 81.5
L 56
Smax 20
Ymax 31
workpiece dimension range 84-174
load(g) 7800
product weight(g) 1133
maximum working pressure 100kPa
product life 300w
