Lateral Fully Automatic Container Loader

1
MOQ
$2000 to $100000
Price
Lateral Fully Automatic Container Loader
Features Gallery Product Description Request A Quote
Features
Specifications
After-Sales Service Provided: Engineers Available To Service Machinery Overseas
Application: Food, Beverage, Chemical, Pharmaceutical
Automatic Grade: Automatic
Control System: PLC
Sealing Mode: Tape
Machine Type: Box Filling Machine
Material Feature: Durable
Dimensions: L6,000×W2,070×H2,000mm
Range Of Min. Specification: Packed Product: L40×W70×H15mm, Carton: L200×W150×H150mm
Packaging Speed: 12 Boxes/min At Maximum
Packaging Type: Boxes, Cartons, Containers
Weight: 3000KG
Voltage/Power: 380V/9KW
Pressure: 6Bar
Range Of Max. Specification: Packed Product: L580×W250×H150mm, Carton: L600×W400×H400mm
Basic Infomation
Place of Origin: China
Brand Name: SRT
Model Number: SRT
Payment & Shipping Terms
Packaging Details: wooden
Delivery Time: 1-4 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 units per year
Product Description

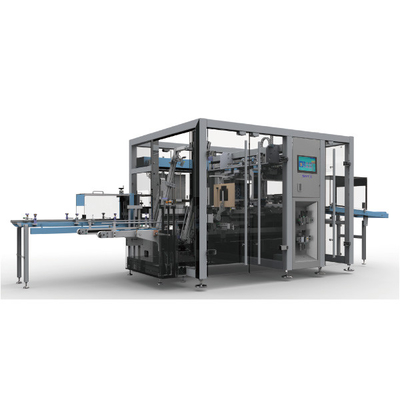

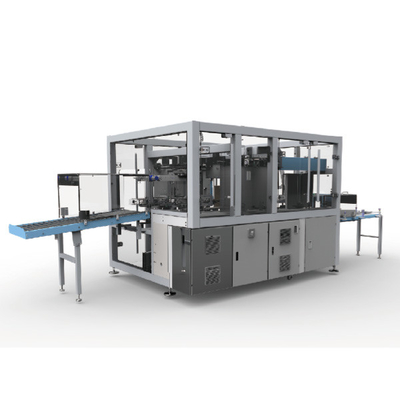

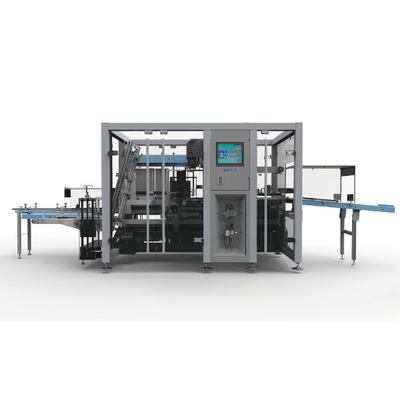

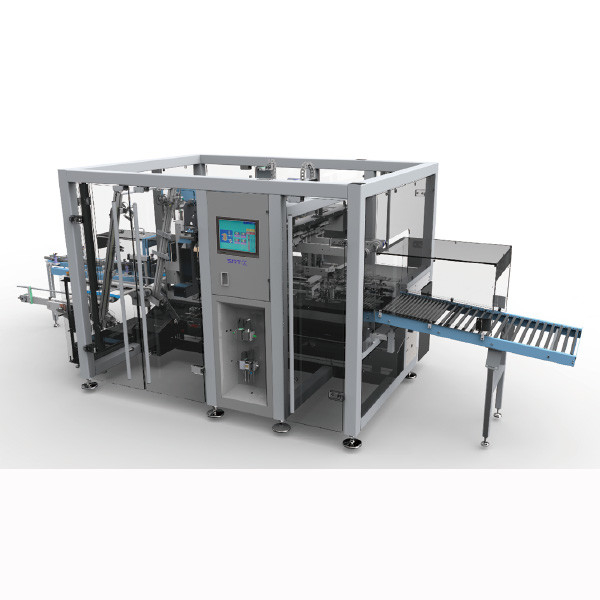

Lateral Fully Automatic Container Loader

Main Components

1.Feeding system

2.Array and stacking system

3.Packing unit

4.Tape sealing unit

5.Unboxing conveyer belt





How It Works



Container loader arranges and stacks products in small or medium package inside feeding system according to customer’s specification requirements (quantity of boxes or medium packages in each carton, mode of arrangement and number of layers *rows). All well-arranged product groups will be sent to carton steadily after arrangement. Cartons containing products passing customer’s specification requirements will be conveyed to sealing unit for tape sealing. Finally, materials will be discharged to ensure carton packing stability.



Main functions



It is applicable to the packing of small or medium package of carton for the purpose of protecting products (avoid damp and dust and protect outer surface) and facilitating logistics transportation. It is mainly used in such industries as drug and chemical for daily use.



Lateral Fully Automatic Container Loader 0



Lateral Fully Automatic Container Loader 1
