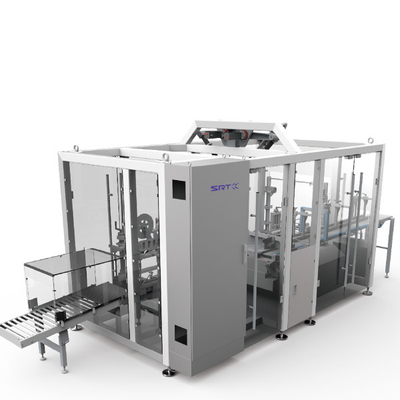

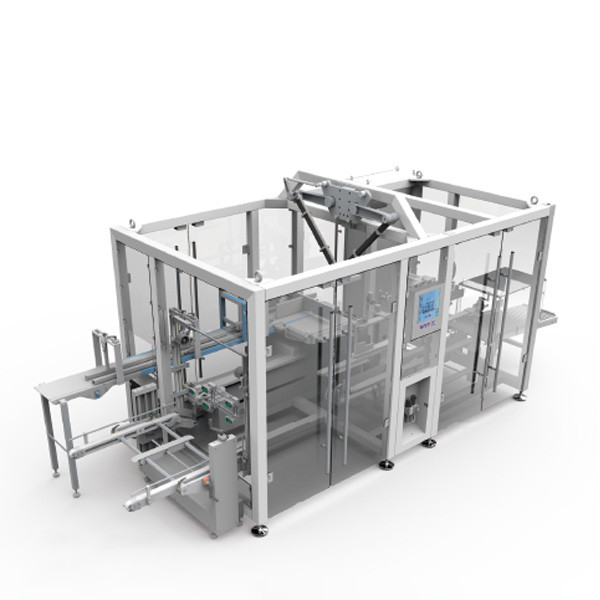

Top Fully Automatic Container Loader

Top Fully Automatic Container Loader

Place of Origin:

China

Brand Name:

SRT

Model Number:

SRT

Contact Us
Request A Quote
Product Details
Dimensions:
L6,200×W2,200×H2,680mm
Application:
Suitable For Filling Various Types Of Boxes, Such As Cartons, Bags, Etc.
Capacity:
12 Boxes/min At Maximum
Control System:
PLC
Sealing Mode:
Tape
Carton Specification:
Corrugated Carton
Material:
Stainless Steel
Operation Mode:
Automatic
Voltage/Power:
380V/10KW
Range Of Min. Specification:
Packing Product: L30×W70×H15mm, Carton: L200×W150×H150mm
Range Of Max. Specification:
Packing Product: L580×W250×H250mm, Carton: L600×W400×H400mm
Weight:
2600KG
Payment & Shipping Terms
Minimum Order Quantity
1
Price
$2000 to $100000
Packaging Details
wooden
Delivery Time
1-4 weeks
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
5000 units per year
Product Description

Top Fully Automatic Container Loader

1.Main components

2.Feeding conveying system

3.Arrangement & sorting system

4.Packing robot unit

5.Tape sealing unit

6.Unboxing conveyer belt



Main functions

It is applicable to products in small and medium carton or bottle, etc. and is used for protecting products (avoid damp and dust and protect outer surface) and facilitating logistics transportation. It is mainly applicable to such industries as drugs, chemicals for daily use, F & B, etc.



Features

1. Balcony-style design, conforming to the GMP Standards

2. The carton conveying unit is in cascade design to ensure consistent pickup conditions per time.

3. The carton conveyer belt is designed with four standing fingers in order to ensure orderly and neat appearance of carton.

4. Mechanical parts are isolated from moving parts, ensuring high safety standard and facilitating cleaning.

5. Operators can operate it easily.

6. None of products from the last batch products will remain on production line when changing specifications.

7. Specification can be switched easily and conveniently.

Top Fully Automatic Container Loader 0



How It Works

Container loader arranges and stacks products in small or medium package or bottle inside feeding system according to customer’s specification requirements (quantity of boxes or medium packages or bottles in each carton, mode of arrangement and number of layers *rows).

All well-arranged product groups will be sent to carton steadily after arrangement and sorting. Cartons containing products passing customer’s specification requirements will be conveyed to sealing unit for tape sealing. Finally, materials will be discharged to ensure carton packing stability
